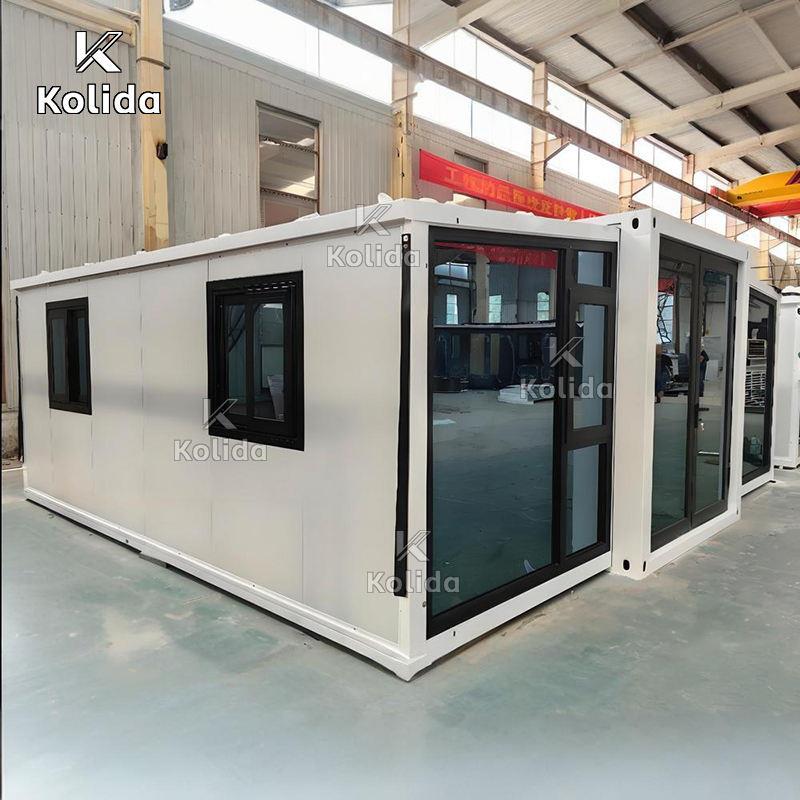

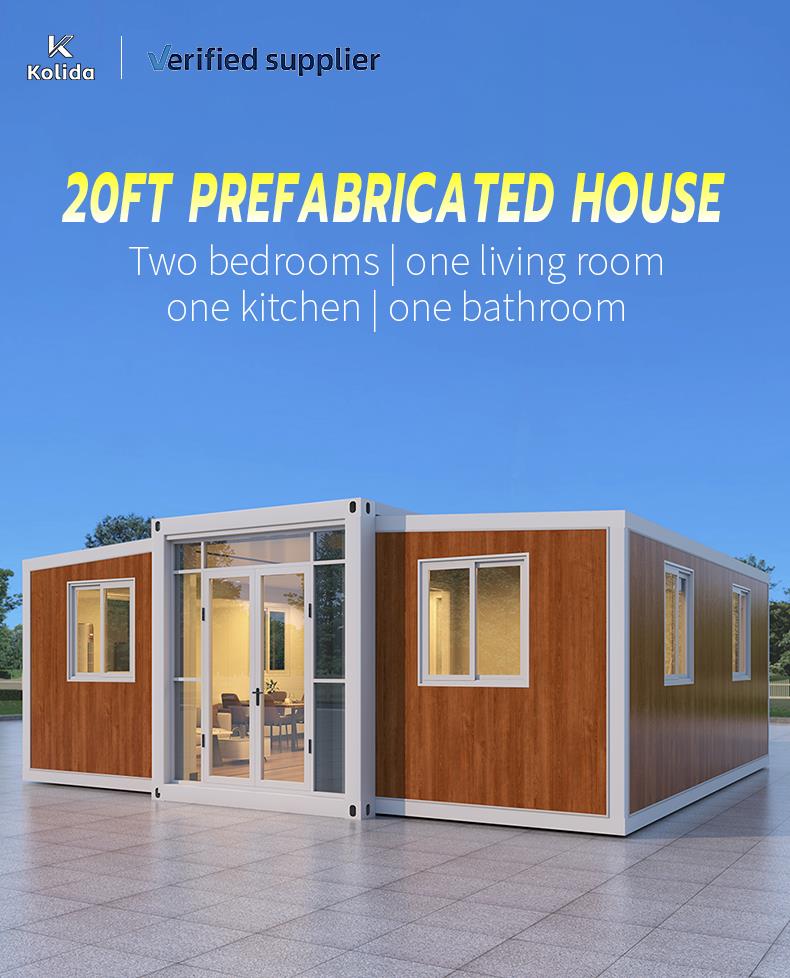

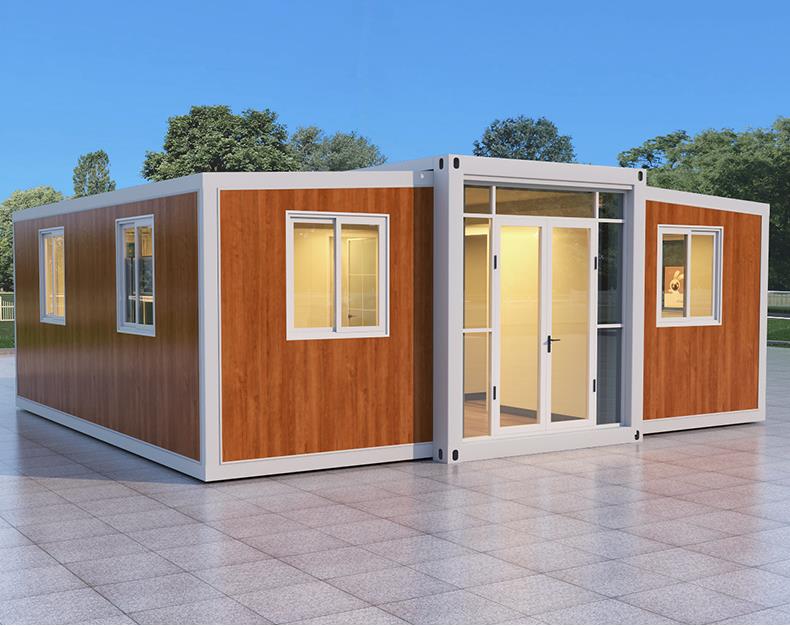

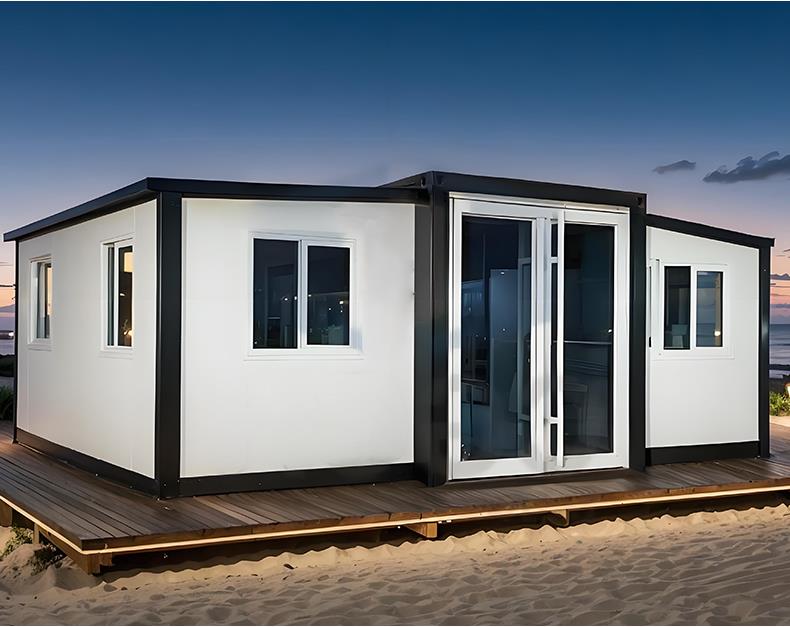

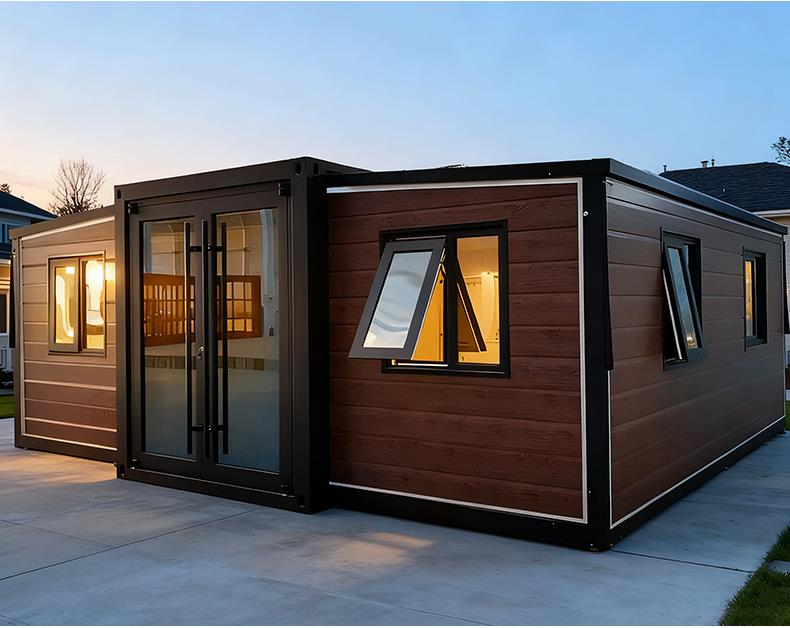

      Kolida 40Ft 20 Ft Waterproof Prefab Steel Container House

      This expandable prefab steel container house is waterproof, insulated, and foldable, making it ideal for various applications such as homes, offices, or medical stations.

      Size： 20FT/30FT/40FT Customized

      Building Area： 36m2,56m2,72m2

      Layout： Two bedrooms, one living room, one kitchen, and one bathroom.

      Material： Steel, Sandwich Panel, Other

      Wall Thickness： Standard, Thicken

      Door： Thermal Break Aluminum Door,Aluminum Alloy Door,KFC Door

      Window： Thermal Break Aluminum Casement Window,Thermal Break Aluminum Sliding Window,Thermal Break Aluminum Bottom-Hung Window,Aluminum Alloy Sliding Window

      Price： $4,865

      Color： Wood Grain ,White ,Grey ,Customized Colors

      Send Inquiry Conant Us

      Secure payments

      Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

      Money-back protection

      Claim a refund if your order doesn't ship, is missing, or arrives with product issues
  • Description
  • Description 2
  • Description 3

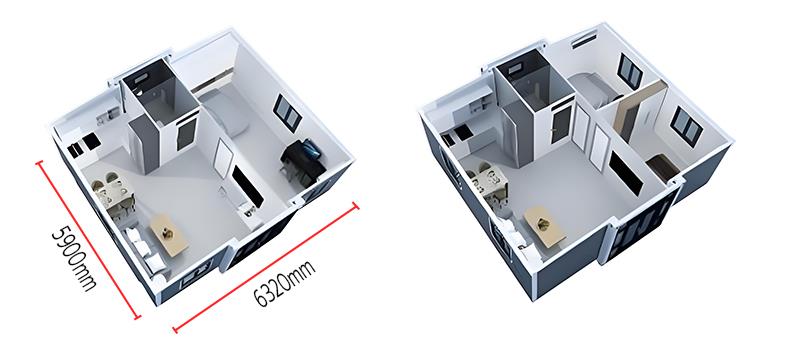

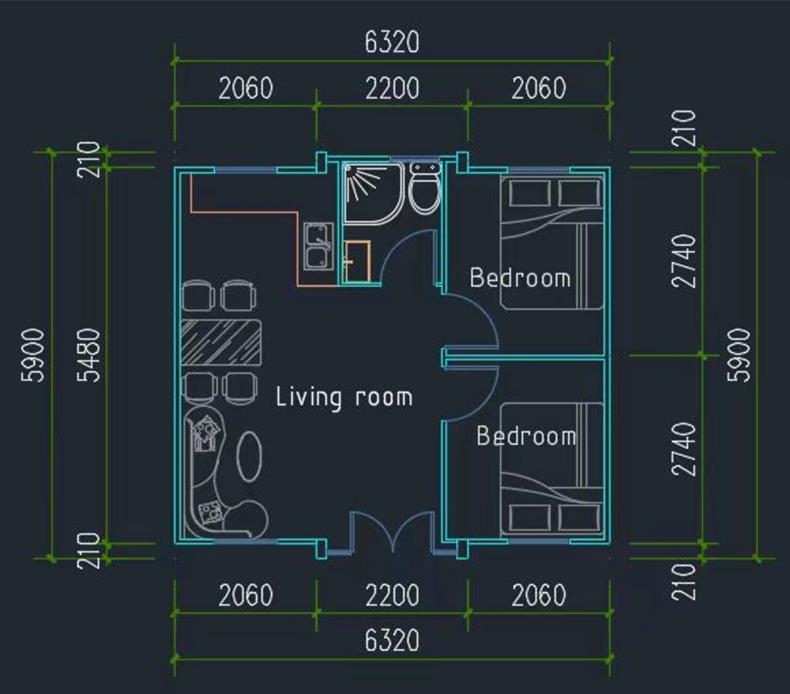

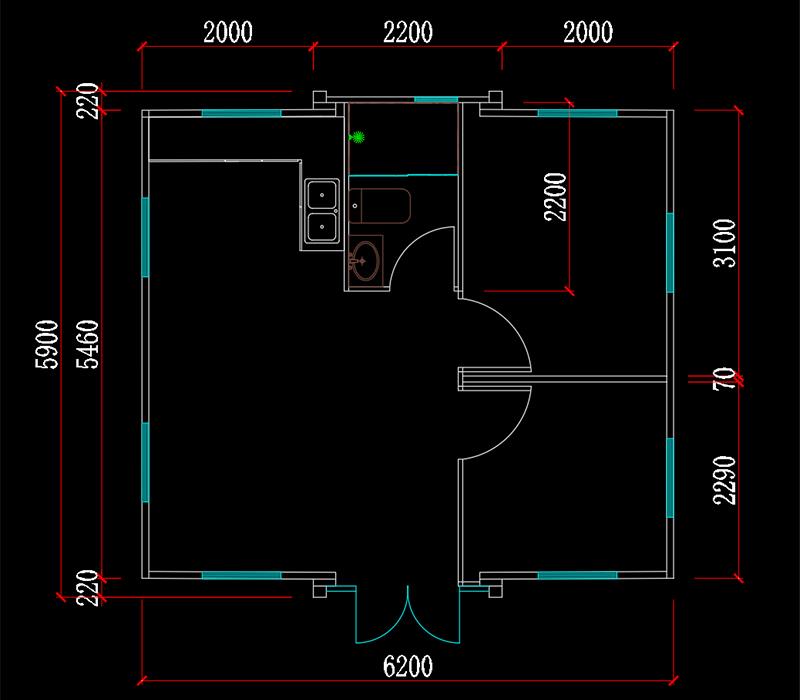

Planar Structure Diagram
one living room,one bedroom
one restroom,one kitchen 		one living room,two bedroom
one restroom,one kitchen
  20FT(scaled-down) 20FT 30FT 40FT
Product
Expandable size L5.9*W4.7*H2.48m L5.9*W6.3*H2.48m L9*W6.2*H2.48m L11.8"W6.2*H2.48m
Folding size L5.9*W0.7*H2.48m L5.9*W2.2*H2.48m L9*W2.2*H2.48m L11.8*W2.2*H2.48m
Total area 27.5㎡ 36㎡ 56㎡ 73㎡
Total Weight 2t 2.8t 6t 7.5t
Transport 1X40HQ
can load 6 units 		1X40HQ
can load 2 units 		1X40HQ
can load 1 units 		1X40HQ
can load 1 units

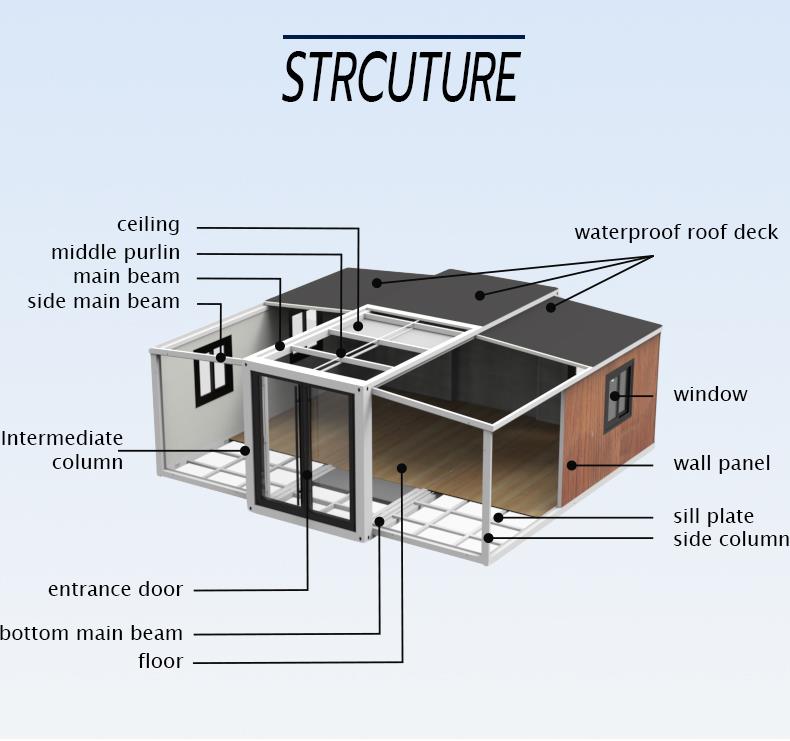

 Frame structure   dle Roof Beam  80*100*T3.0mmQ235B
  dle Floor Beam  80*140*T3.0mmQ235B
 End Side Beam  T2.0mmQ235B Z-shape bending part
  dle Columm  150*210*T3.0mmQ235B
 Lifting Head  T6mmQ235B
 Overall Frame Protective Coating  Electrostatic spary/white plastic
 Roof  External Roof Panel  T50mm flame-retardant purified foam board
 Internal Ceiling  T193 suspended ceiling
 Wall Panel  Side and Front/Rear Wall Panel  T65mm flame-retardant purified foam board
 Top Insulation/External Partition  T50mm flame-retardant purified foam board
 Floor  Bottom layer  18mm fireproof cement floor/18mm banboo-wood floor
 Surface layer  SPC Stone-Plastic Floor/PVC 2.0mm
 Door  Thermal Break Aluminum Door/Aluminum Alloy Door/KFC Door
 Windows  Thermal break aluminum windows/Aluminum alloy windows
 Standard Cabinet  L-shape cabinet,includes sink(marble countertop colors are optional)
 Bathroom Toilet,washbasin,mirror,cabinet,floor drain Ventilation windows,Plumbing pipes(110mm,75mm,20mm)
 Shower room  Rectangular Tempered Glass Integrated Bathroom
 Electrical System Eelctrical wiring is installed strictly according to moisture-proofstandards.All electrical products must comply with CEcertification Cricuit connections folllow electrical engineering standards. Includes:two indoor LED lights ,two ceiling lights 3single-switch five hole sockets1single switch,3 ton-hole socaket,one air conditioner socaket, one 20A leakage protector, Voltage:220V,50Hz

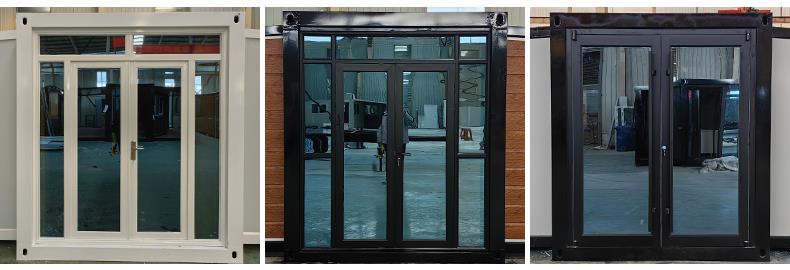

ENTRANCE DOORS

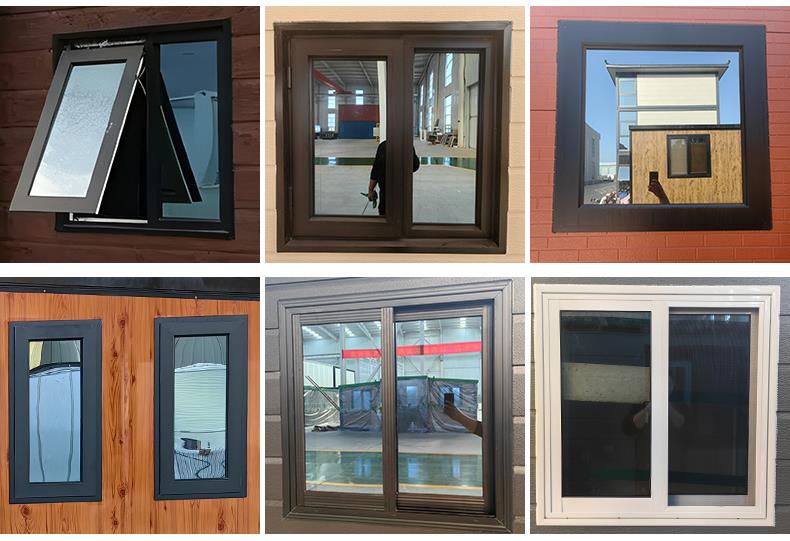

WINDOW

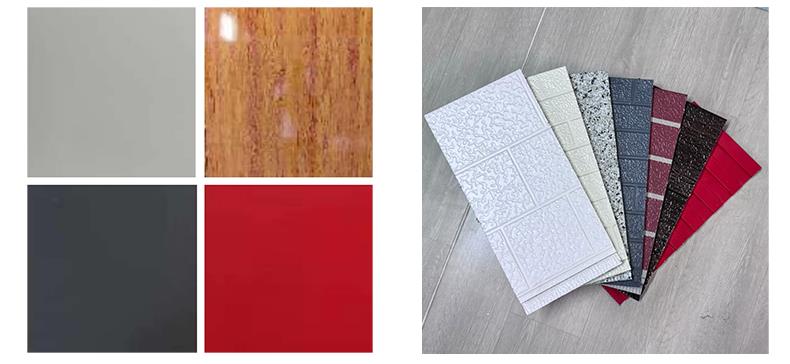

WALLBOARD

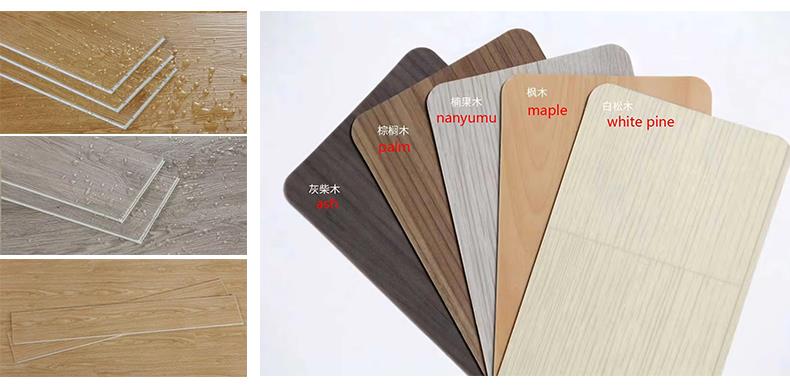

DECORATIVE FLOORING

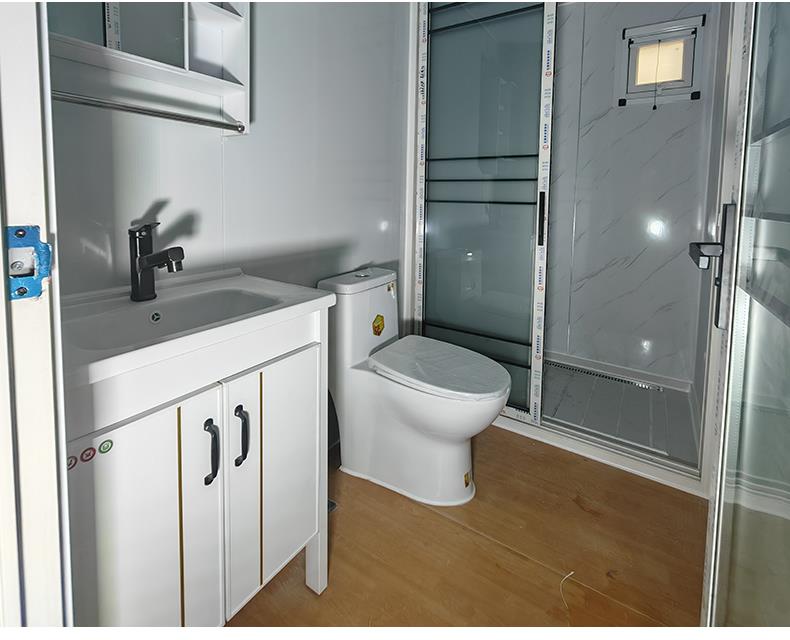

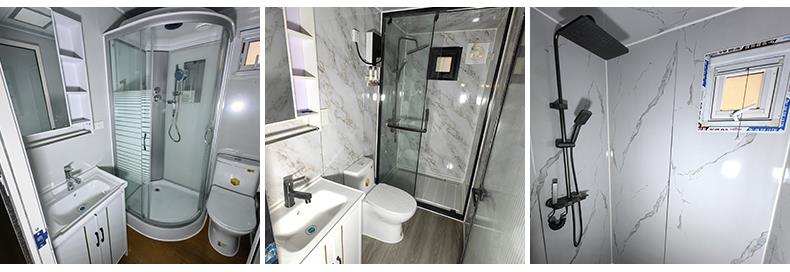

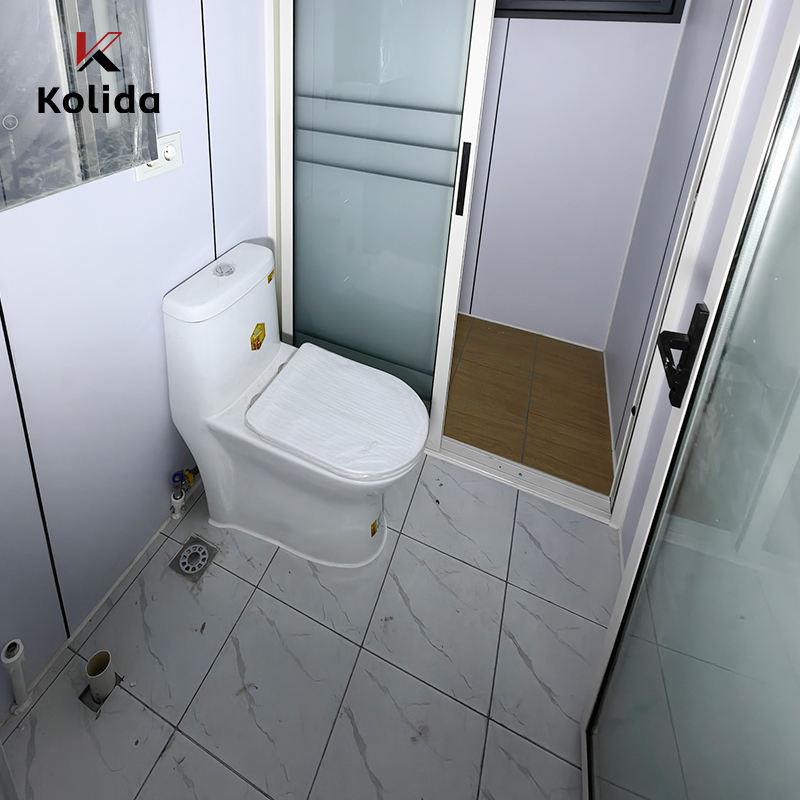

TOILET & BATHROOM

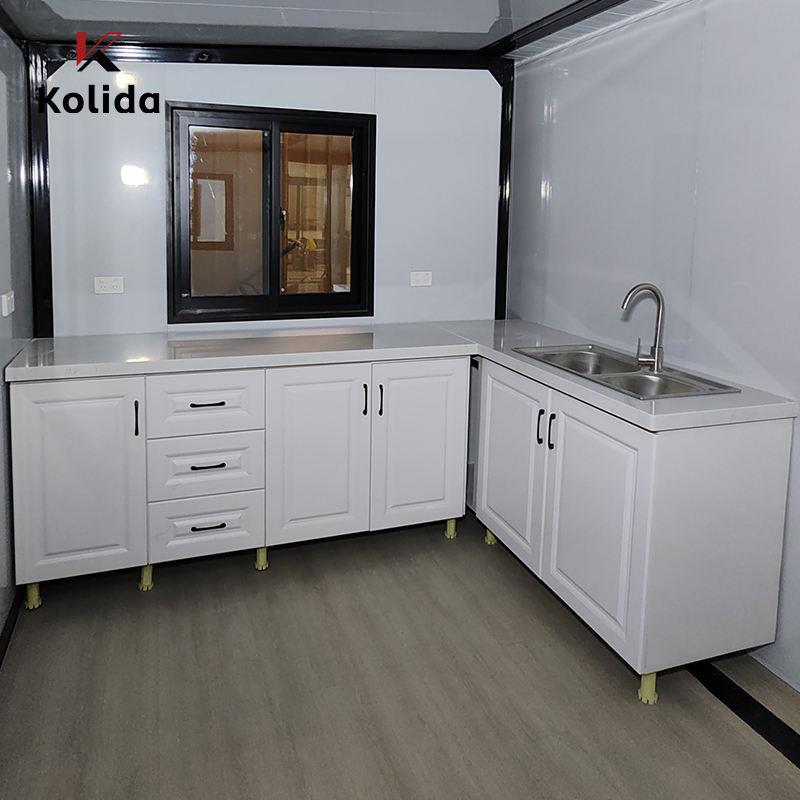

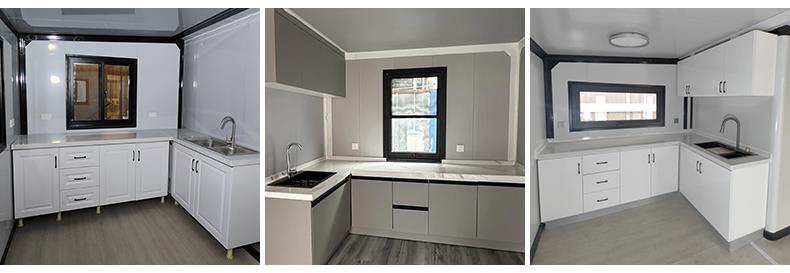

KITCHEN

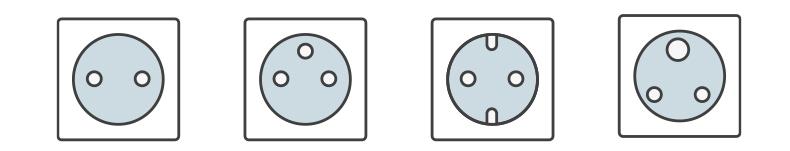

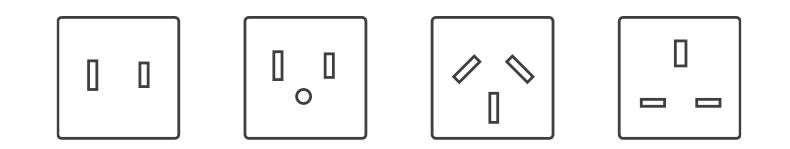

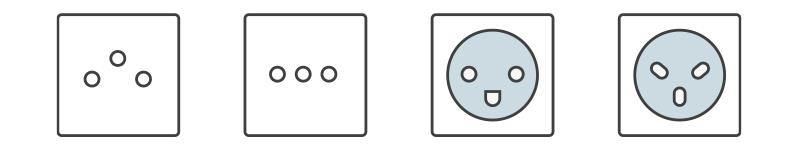

Meets the global power supply requirements of
110-220-480V and socket requirements
TYPE A
USA,MEX,CAN
& JPN 		TYPE B
USA,MEX,CAN
& JPN 		TYPE I
AUS,ARG
& NZLCHN 		TYPE G
GBR IRL,MLT
MAS & SIN
TYPE C
EUROPE, SOUTH AMERICA
& ASIA 		TYPE E
FRA, BEL, POL
SVK & CZE 		TYPE F
EUROPE, RUSSIA
. 		TYPE D
INDIA
.
TYPE J
SUI, LIE & RWA
. 		TYPE L
ITALY & CHILE
. 		TYPE K
DENMARK
& GREENLAND 		TYPE H
ISRAEL
.

Trade Show Client

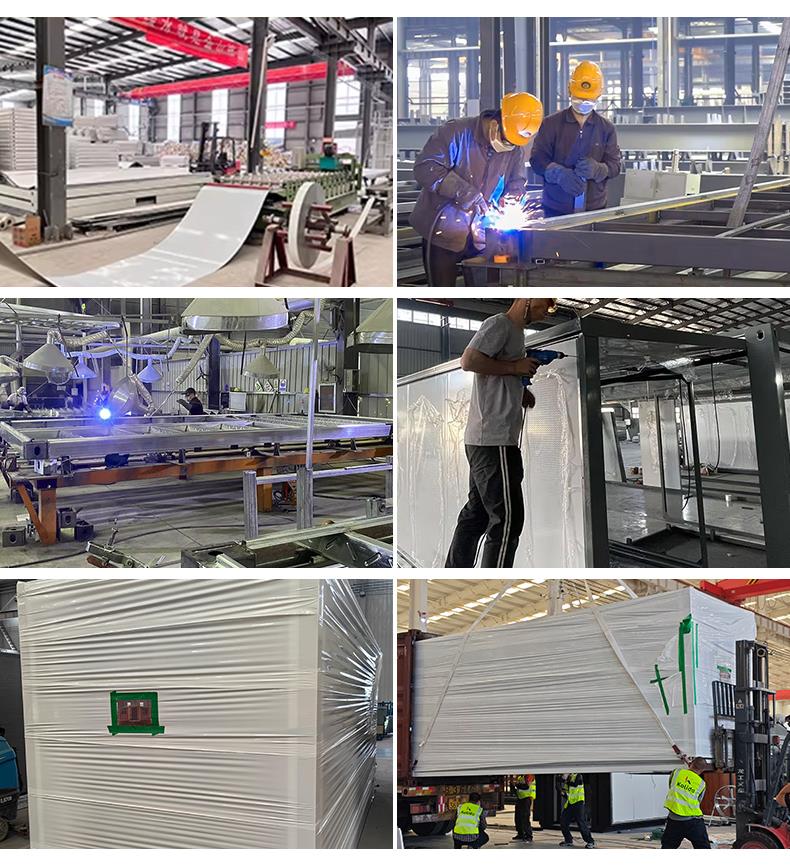

PRODUCT PROCESS
